$2,549.00

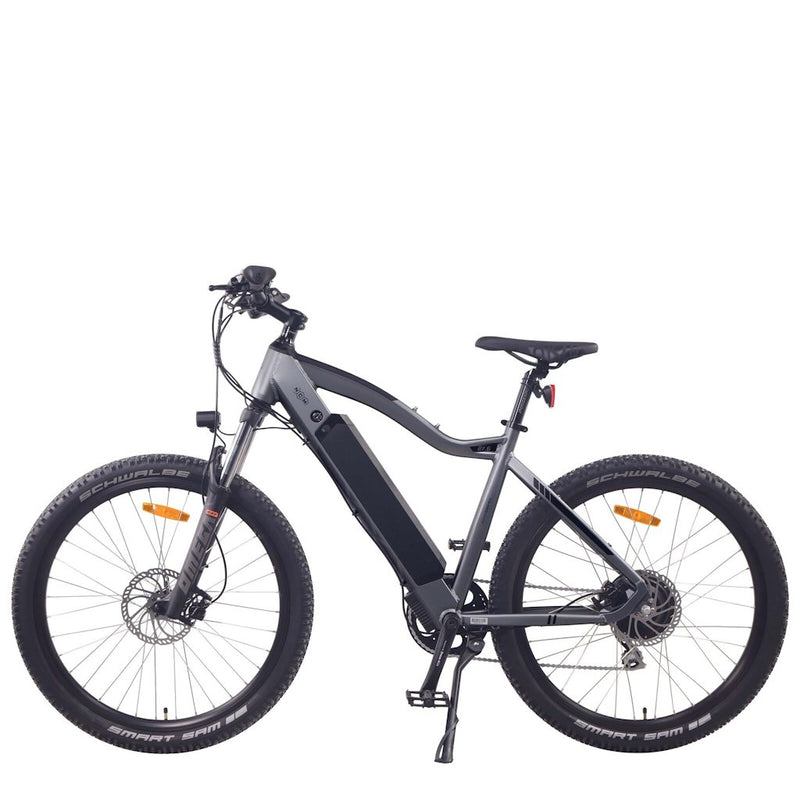

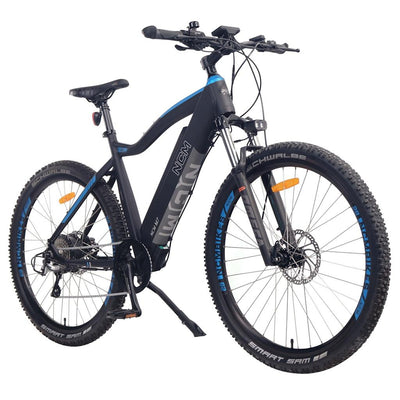

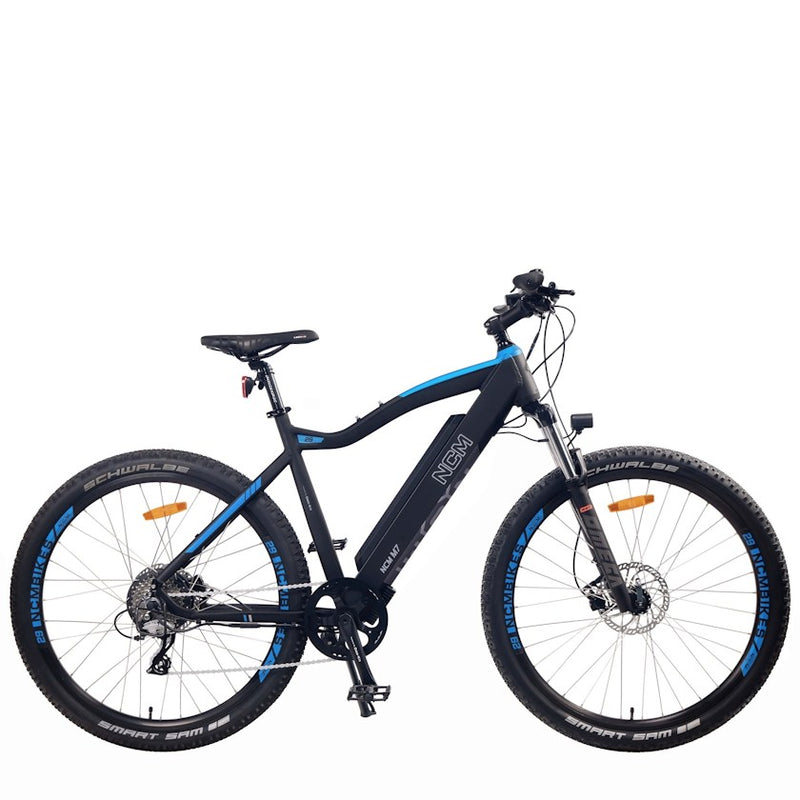

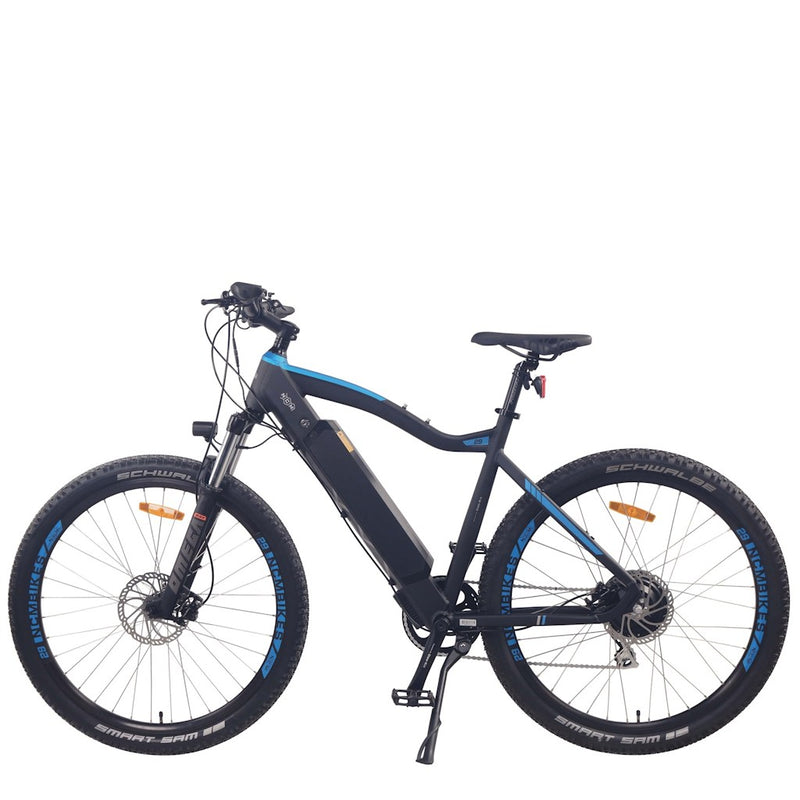

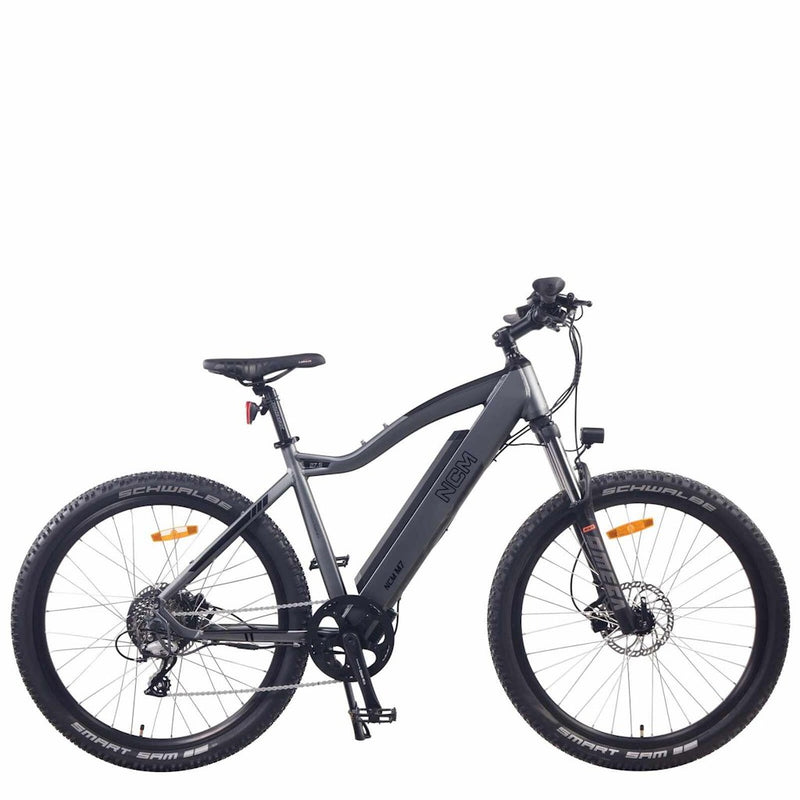

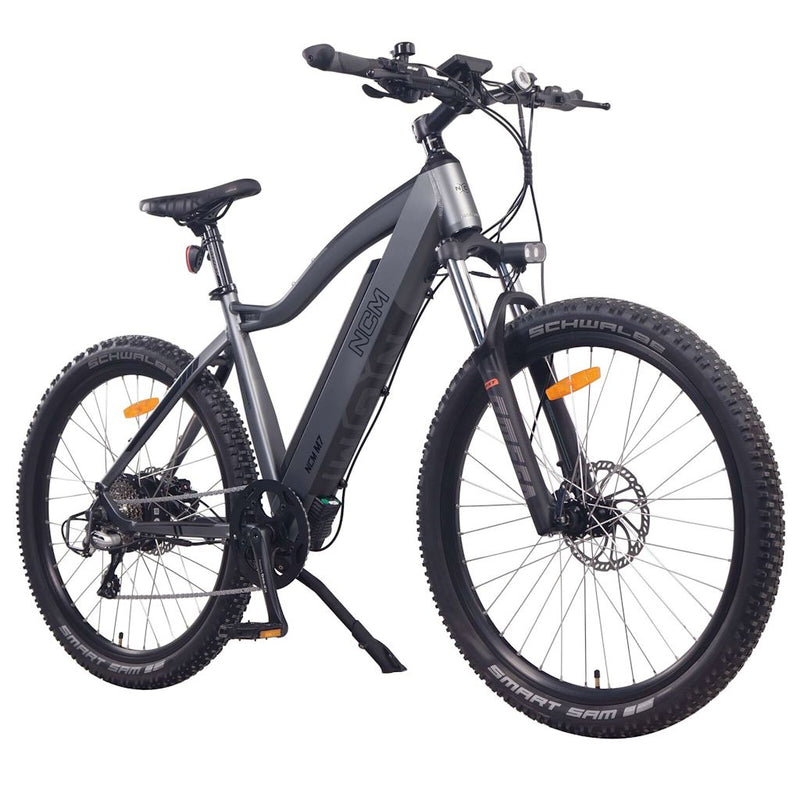

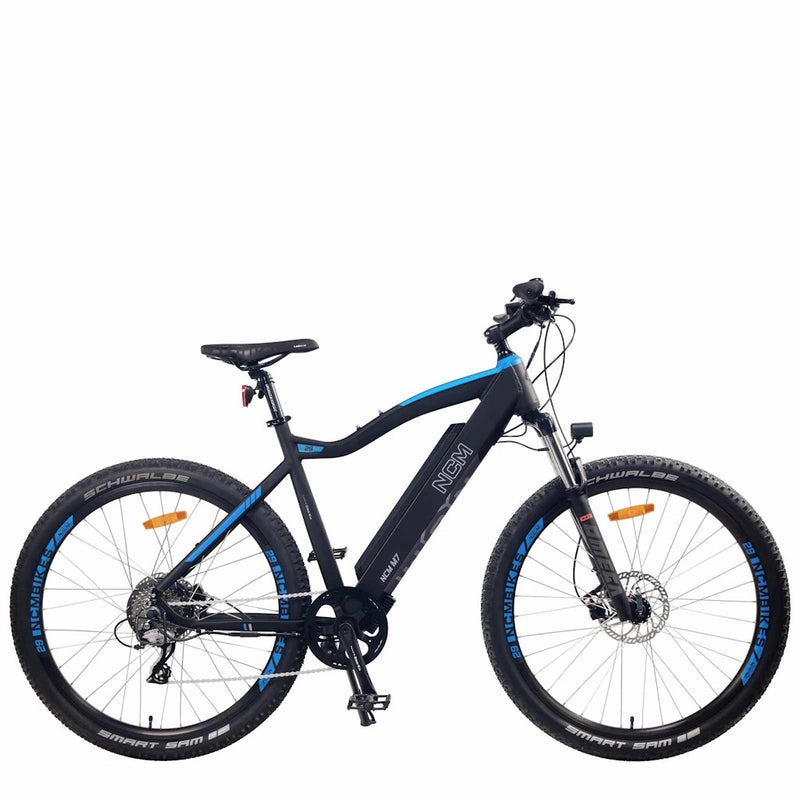

The NCM M7 Electric Mountain Bike is for those chasing an electrifying ride. Whether on road or off road the NCM M7 does the job. With it’s high-end brakes, advanced drive systems, and impressive torque, riders are empowered to take on challenges with confidence.
Bike more pollute less
A full size electric bicycle featuring six levels of pedal assistance controlled from an LCD screen showing speed, odometer and charge status.
Equipped with innovative Battery Tag Technology, the NCM M7 offers peace of mind with a built-in GPS location tag within the battery. Simply check your e-bike's location with ease, ensuring security and convenience wherever your adventures take you.
BIKE COMPONENTS
Frame: Alu. 6061, 29"/27.5"*480MM

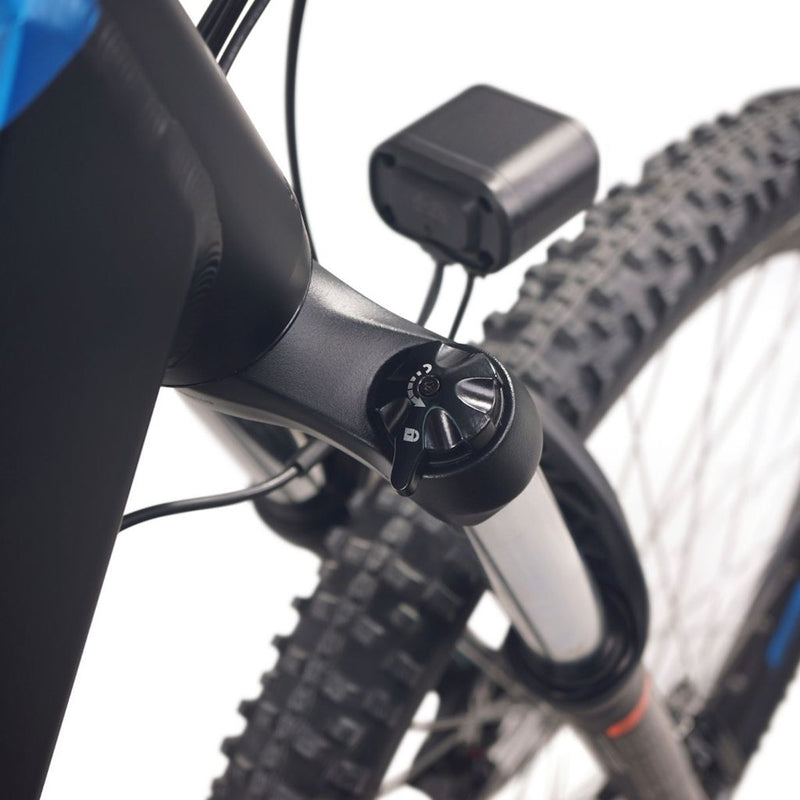

Suspension Fork: RST, OMEGA-TNL-29/27.5, with Hydraulic Lock System
Brake: F/R: Das-Kit Hydraulic Disc Brakes, DK-100，F: 180mm rotor R: 180mm rotor
Freewheel: LY, 8 Speed, 11-32T, Silver
Tire: Schwalbe, Smart Sam 29 / 27.5×2.35

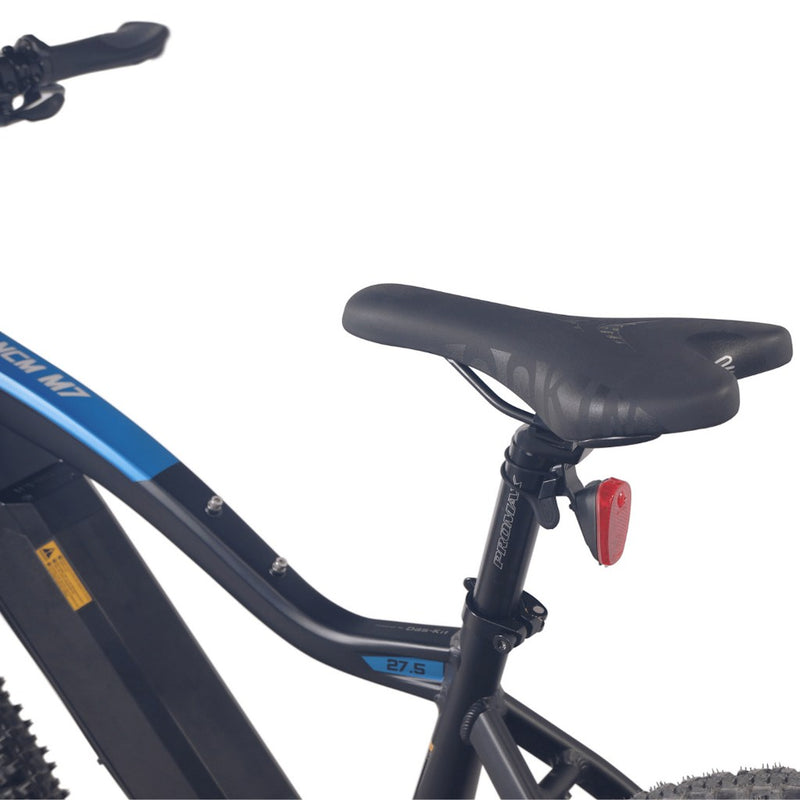

Saddle: Selle Royal, Lookin-A200UR, Black
Stem: Promax, MA-579
Crank: Das-Kit, 52T
Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed, BK

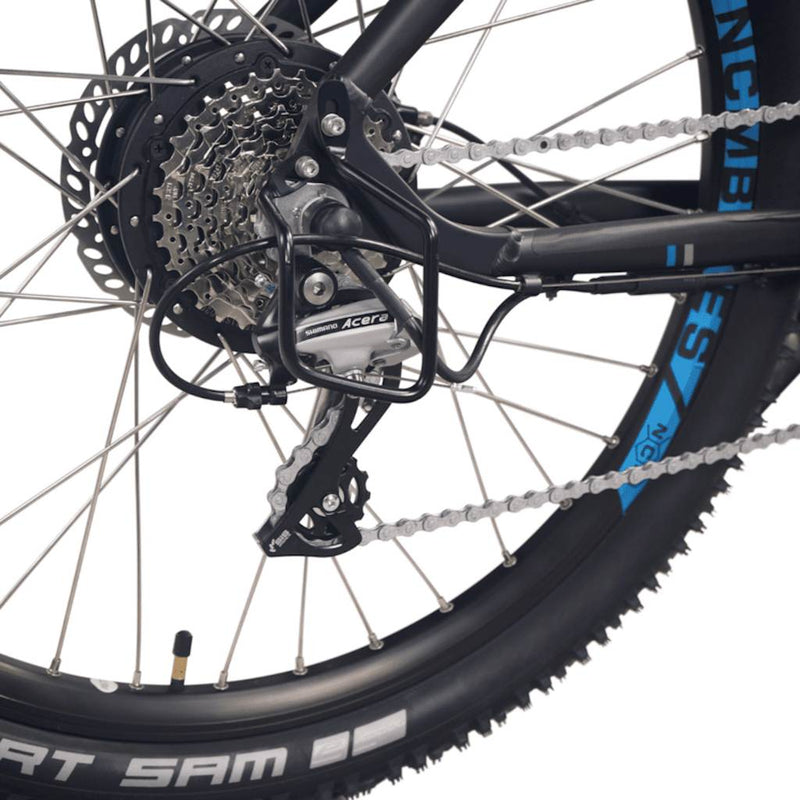

Rear Derailleur: Shimano, Acera, RD-M360
Chain: KMC, Z8.3RB, Silver
ELECTRIC COMPONENTS
Battery: Das-Kit, i7-4819, 48V19AH, 912WH with TAG Technology
Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25kM/H
Controller: Das-Kit, T7+, 48V 18A

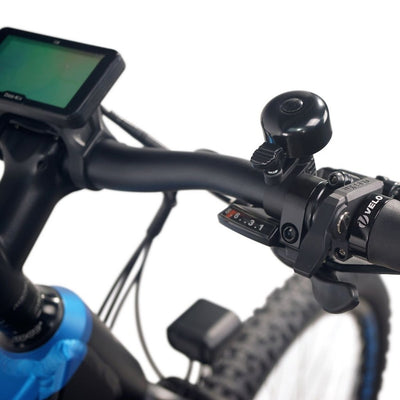

Throttle: Das-KIt, T6
Charger: Das Kit, 48V 3A

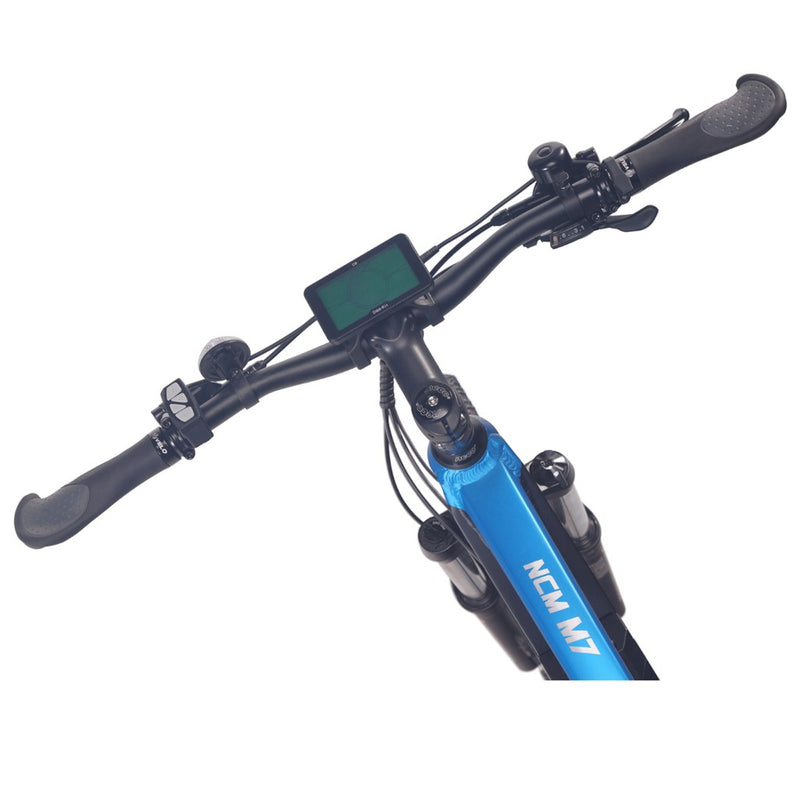

Display: Das-Kit, C8, with USB

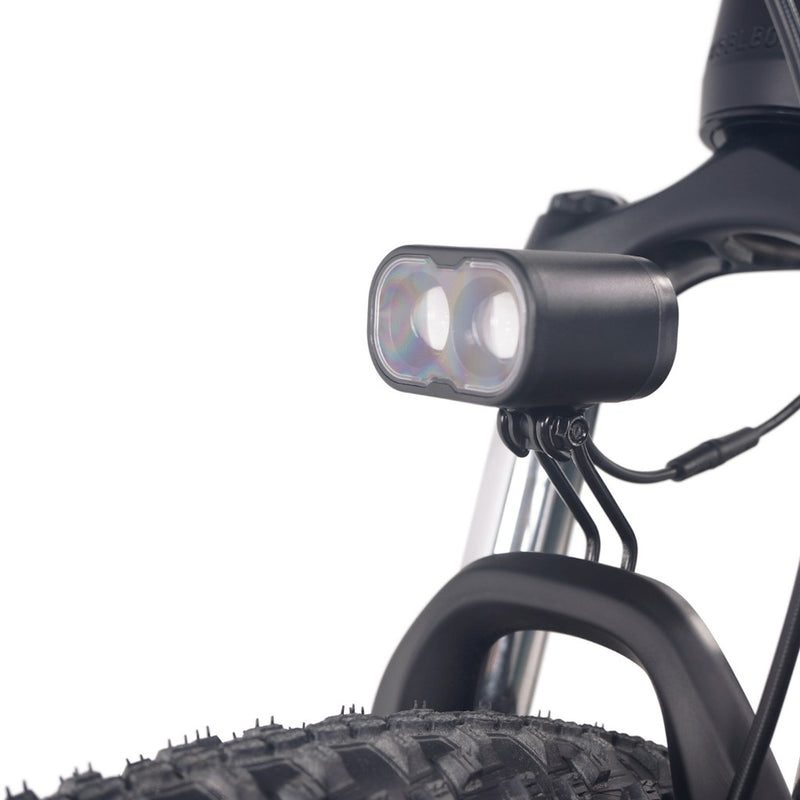

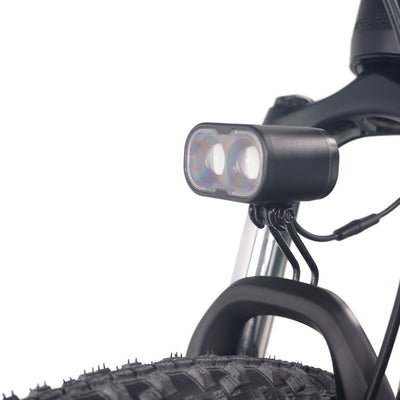

Front Light: LED, 48V, 70Lux
Rear Light: LED, 3V, 2xCR2032
WEIGHT
NCM M7 29"/ 27.5":
Weight (without battery): 23.5KG / 22.5KG
Battery Weight: 4.8KG
Max Load (rider+bike): 125KG
